General Introduction

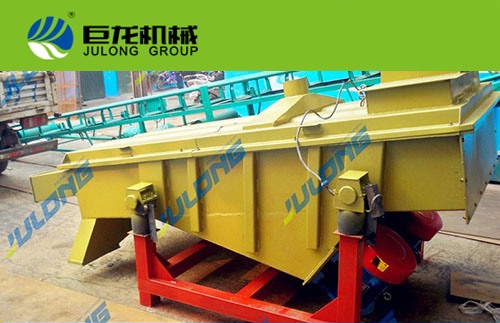

ZKB serious Linear vibrating screen is driven by double motors. It’s widely used in plastic, abrasive, chemical industry, building material, foods, chemical fertilizer for filtering and sorting. It requires the size between 0.0745-5mm,water content below 70%, and no viscosity material.
Advantages and features
1. Use eccentric block as vibration force.
2. Long working life, low noise, low energy
3. Screen beam is connected with Screen box by bolt, no welding
4. Buffered connection, running smoothly.
5. High precision,large capacity, high efficiency, long working life.
6. The whole-close structure and automatic discharge makes it much more fit for
7. Simple structure and easy maintenance.
Basic Parameter
|
Model |
Layers |
Hole size |
Feeding size |
Capacity(T/h) |
Amplitude
(mm) |
Vibrating angle |
Power(kw) |
|
ZKB0936 |
1 |
5-25 |
<100 |
40 |
6-8 |
45 |
3*2 |
|
2ZKB1020 |
2 |
8-25 |
<100 |
60 |
6-8 |
45 |
3*2 |
|
ZKB1025 |
1 |
8-25 |
<100 |
60 |
6-8 |
45 |
3*2 |
|
ZKB1225 |
1 |
8-25 |
<100 |
80 |
6-8 |
45 |
3*2 |
|
ZKB1236 |
1 |
10-25 |
<100 |
100 |
6-8 |
45 |
5.5*2 |
|
2ZKB1236 |
2 |
25-50 |
<100 |
150 |
6-8 |
45 |
5.5*2 |
|
2ZKB1437 |
2 |
25-50 |
<100 |
200 |
6-8 |
45 |
5.5*2 |
|
ZKB1542 |
1 |
25-50 |
<100 |
200 |
6-8 |
45 |
5.5*2 |
|
ZKB1756 |
1 |
25-50 |
<300 |
300 |
6-8 |
45 |
11*2 |
|
2ZKB1756 |
2 |
25-50 |
<300 |
400 |
6-8 |
45 |
11*2 |
|
ZKB1836 |
1 |
25-50 |
<300 |
400 |
6-8 |
45 |
11*2 |
|
2ZKB1848 |
2 |
25-80 |
<300 |
600 |
6-8 |
45 |
11*2 |
|
ZKB1856 |
1 |
25-80 |
<300 |
500 |
6-8 |
45 |
11*2 |
|
2ZKB1856 |
2 |
25-80 |
<300 |
600 |
6-8 |
45 |
15*2 |
|
ZKB1863 |
1 |
25-80 |
<300 |
500 |
6-8 |
45 |
15*2 |
|
2ZKB2065 |
2 |
25-80 |
<300 |
1000 |
6-8 |
45 |
15*2 |
|
ZKB2452 |
1 |
25-80 |
<300 |
800 |
6-8 |
45 |
15*2 |
|
ZKB2460 |
1 |
25-80 |
<300 |
800 |
6-8 |
45 |
15*2 |
|
2ZKB3060 |
2 |
25-80 |
<300 |
1000 |
6-8 |
45 |
22*2 |
|
ZKB3675 |
1 |
25-80 |
<300 |
1500 |
6-8 |
45 |
22*2 |
|
|
Qingzhou Julong Environment Technology Co., Ltd Address: Julong Industry Park, Qingzhou City, China Hot service: +86-536-3837236/3836888 Phone: +86 186 636 33168 +86 186 636 22100 Email: info@trust-sun.com |
